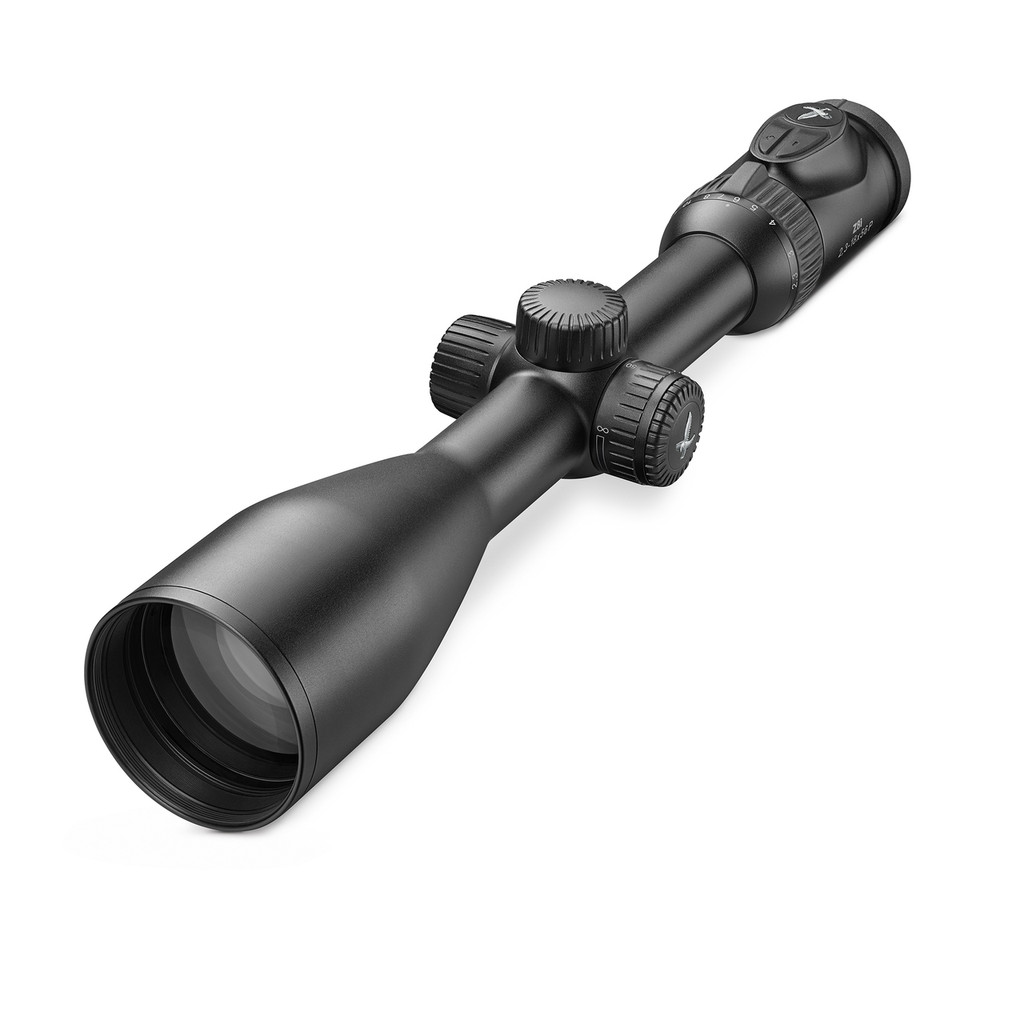

Z8i ( 2.3-18x56 )

Write a Review
SKU:
68403
Shipping:
Calculated at Checkout
  • Z8i ( 2.3-18x56 )
  • Z8i ( 2.3-18x56 )
  • Z8i ( 2.3-18x56 )
  • Z8i ( 2.3-18x56 )
$3,169.00

Description

KEY FEATURES

  • New 8X Zoom
  • 4 Illuminated Models (Z8i 1-8x24)  (Z8i 1.7-13.3x42 P) (Z8i 2-16x50 P)  (Z8i 2.3-18x56 P)
  • HD Optics (except Z8i 1-8x24)
  • Optional BTF (Ballistic Turret Flex) Elevation turret allows for 3 methods of elevation correction
  • Optional BTF (Ballistic Turret Flex) Windage turret for easy windage adjustment
  • Both BTF Elevation and Windage Turrets install without the use of tools
  • PBR (Personalized Ballistic Ring) available with 25/50 yard or Mil increments
  • PBR has greater range than Z6 BT models
  • 4A-IF Reticle – The 1st changeable reticle – Go from Dot to Circle Dot
  • Available in the Z8i 1-8x24 or 1.7-13.3x42 P
  • Utilizes a slim 30 mm main tube for an 8X Zoom
  • 4-point coil spring system
  • Extremely High 93% Light Transmission
  • Compact Illumination Controls
  • Long Range BRT-I or BRX-I reticles available

TECHNICAL SPECS

  • Magnification: 2.3 - 18
  • Effective objective lens diameter (mm): 18.4 - 56
  • Exit pupil diameter (mm): 8.1 - 3.1
  • Eye relief (in): 3.74
  • Field of View (ft / 100 yds): 55.8 - 6.9
  • Field of View, apparent (degrees): 24.0
  • Diopter adjustment (dpt): -3 to +2
  • Light Transmission (%): 93
  • Twilight Factor based on ISO 14132-1: 6.5 - 31.8
  • Impact point corr. per click  (in / 100 yds): 0.36
  • Max Elevation / Windage Adjustment Range (in / 100 yds): 54 / 27  per side
  • Max. elevation/windage adjmt range with BTF  (in / 100 yds): 25.2 / 12.6  per sid
  • Parallax correction (yds): 55 - ∞
  • Objective filter thread: M58 x 0.75
  • Length (in): 14.3
  • Weight (oz): 25.6
  • Central Tube Diameter (mm / in): 30 / 1.18
  • Reticles: 4A-IF, BRT-I
