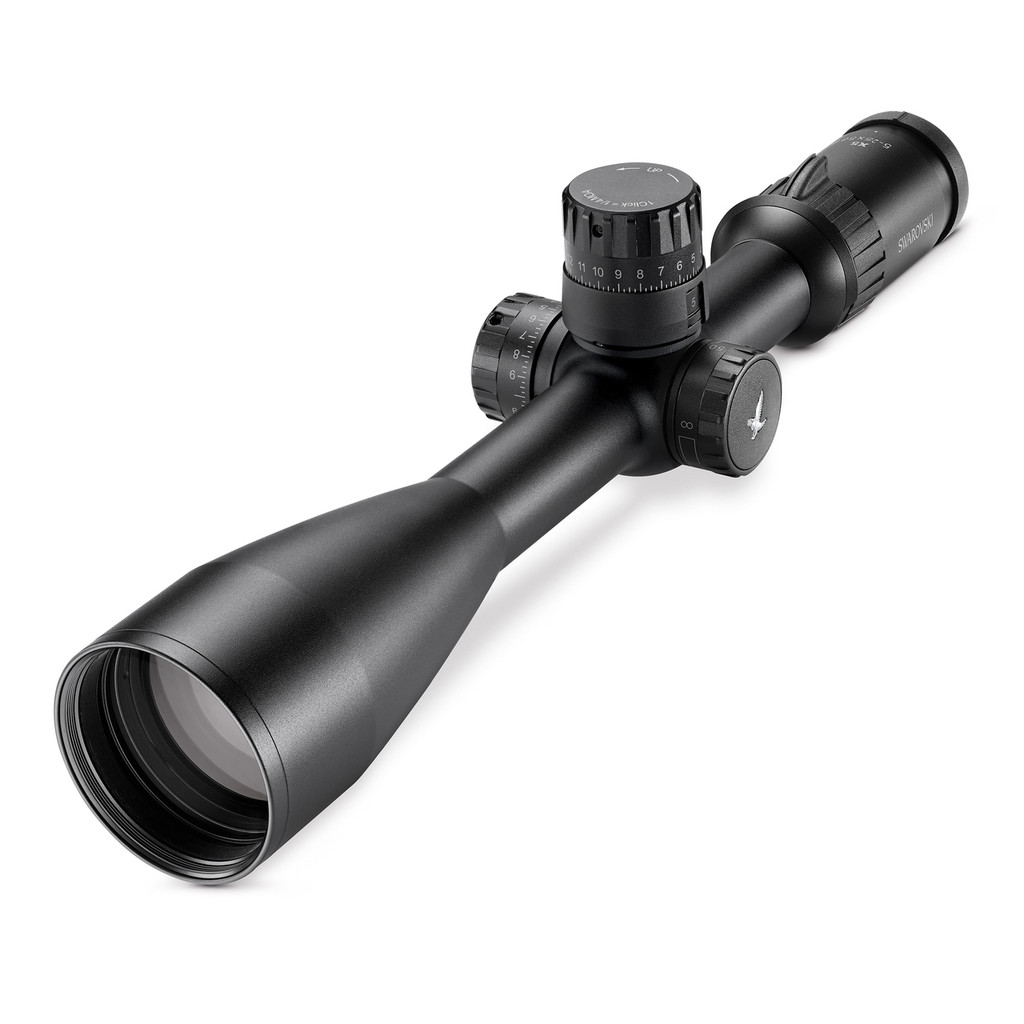

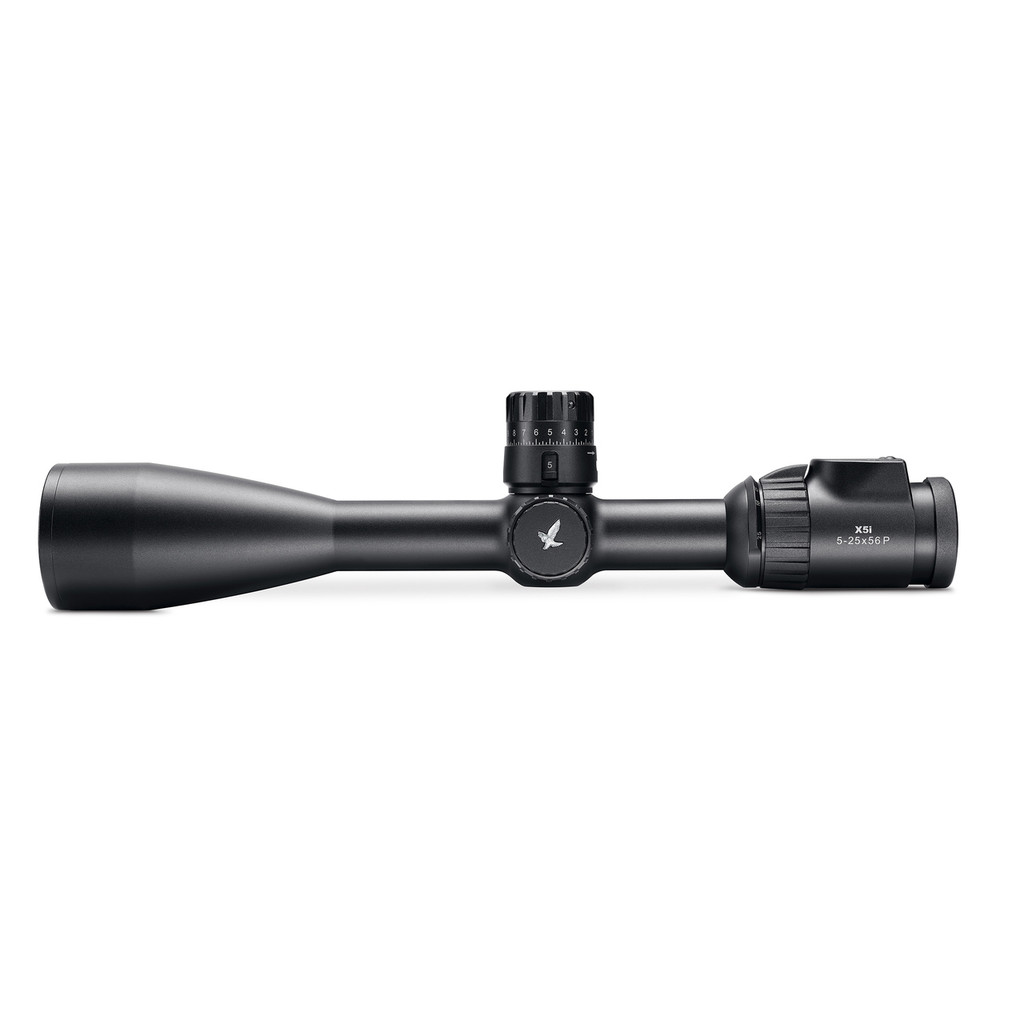

X5i ( 5-25x56 )

$3,499.00
KEY FEATURES

  • Up to 116 MOA of elevation adjustment for long range capability
  • 5X Zoom Range
  • The newly designed turret and inversion systems have been built with stainless steel components, a Patent Pending Spring Retention and Lever System that exerts the same pressure on both turrets in any position. This assures maximum accuracy, precision and repeatability from the heaviest recoiling calibers.
  • 20 MOA or 80 clicks per revolution (with ¼ MOA turrets)
  • 30 mm Main Tube, built with extreme precision and ruggedness in mind
  • Main tube wall thickness has been built up to increase overall ruggednessPXC (Personalized Extreme Cam) yardage cam available with two complete revolutions
  • Elevation turret has a viewing window (patent pending) to let you know what revolution you’re on
  • ¼ MOA Point of Impact Adjustments
  • SUBZERO function allows the shooter to go up to 40 clicks (10 MOA) below a pre-set Zero for closer shots
  • SWAROTOP, SWARODUR, SWAROCLEAN coatings
  • Parallax correction from 50 m to infinity
  • Four 2nd Focal Plane reticles available either illuminated or non-illuminated: 4WX/4WX-I+, BRM/BRM-I+, 4W/4W-I+, Plex/Plex-I+
  • 4WX style reticle has 1 MOA increments.  BRM / 4W style reticles have 2 MOA increments
  • Illuminated reticles have 10 brightness levels
  • X5(i) 5-25x56 with Plex/Plex-I+ reticle(s) with 1/8 MOA turrets available on special request

TECHNICAL SPECS

  • Magnification: 3.5-18x
  • Effective objective lens diameter (mm): 34.2-50
  • Exit pupil diameter (mm): 9.5-2.8
  • Eye relief (in): 3.74
  • Field of View (ft / 100 yds):30.0-6.3
  • Field of view (degrees) : 5.8-1.2
  • Field of View, apparent (degrees): 21.4
  • Diopter adjustment (dpt): -3 to +2
  • Light Transmission (%): 91
  • Twilight Factor based on ISO 14490-1: 11.0-30.0
  • Impact point correction/click  (in / 100 yds): 1/4
  • Max Elevation / Windage Adjustment Range (in / 100 yds): 122.4 / 72.0
  • Max. elevation/windage adjmt range with BTF  (in / 100 yds): 116/67
  • Parallax correction (yds): 55 - ∞
  • Objective filter thread: M 52x0.75
  • Length (in): 14.4
  • Weight (oz)  Non-Illuminated/Illuminated: 28.6 / 30.7
  • Central Tube Diameter (mm/in): 30/1.18
  • Reticles                     BRM, 4W, 4WX BRM-I+

               Illuminated           BRM-I+, 4W-I+
               Non-Illuminated    4WX-I+
