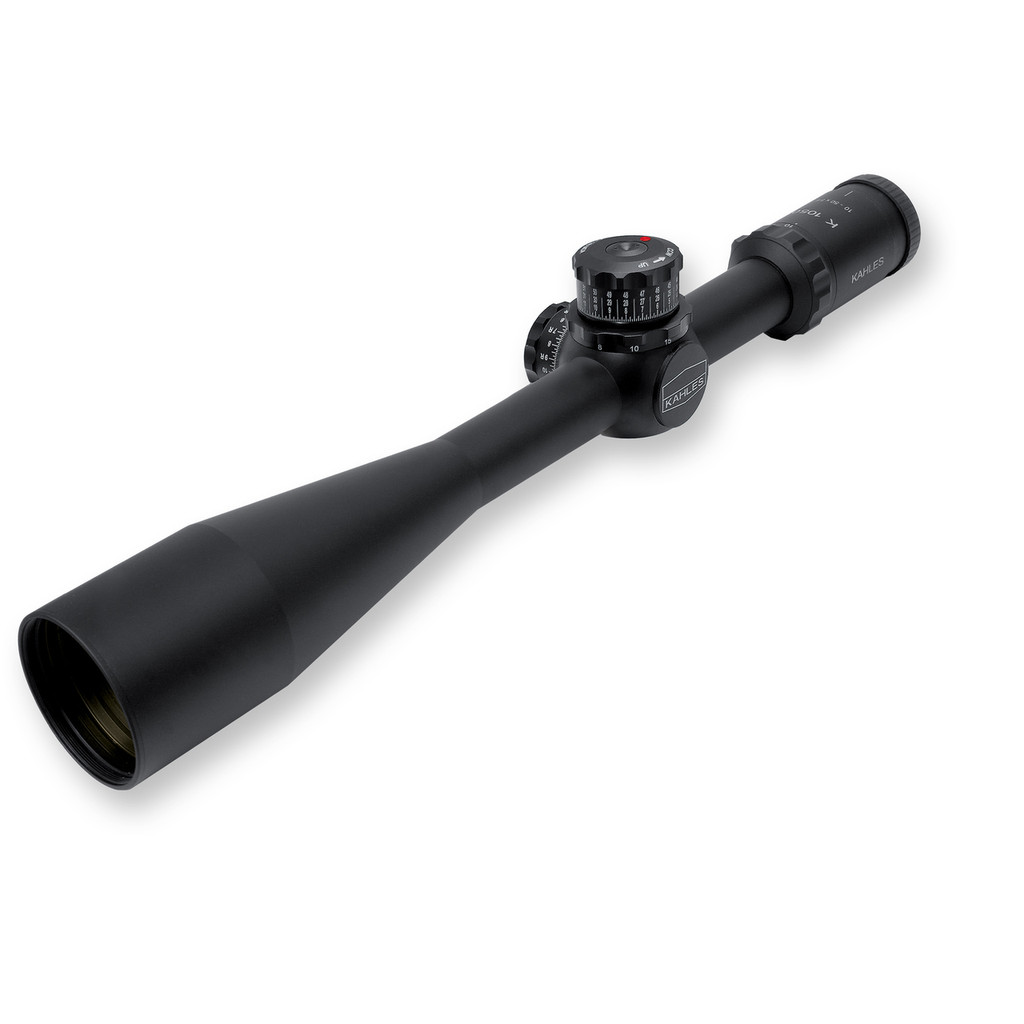

K1050

Write a Review
SKU:
10598
Shipping:
Calculated at Checkout
  • K1050
  • K1050
  • K1050
  • K1050
  • K1050
  • K1050
$2,799.00

Description

Key Features

Innovative parallax adjustment integrated in the elevation turret (patented)

Optional “Left Hand” model available. Windage turret offered on the left side of scope

1st Focal Plane Illuminated MIL / MOA Based Reticles

10 MIL / ¼ MOA click adjustments

34 mm main tube for large range of adjustment

Over 95% Light Transmission

Ultra precision adjustments constructed of hardened steel

Elevation Turret has a second rotation indicator and precise zero stop setting

Sunshade available

Technical Specifications

Magnification: 10-50X

Objective Lens Diameter: 56 mm

Field of View: (ft. at 100 yards): 8.7 ft @ 100 yds @ 10X 2.9 m @ 100 m @ 10X 1.8 ft @ 100 yds @ 50X 0.6 m @ 100 m @ 50X

Eye relief: 3.54 inches

Diopter Compensation: +2 / -3.5

Twilight Factor (DIN 58388): 18.3-36.7

Parallax adjustment: (m) 50 - ∞

Impact correction per click .10 MILS = 1 cm @ 100 m = .36 in. @ 100 yds = 10 mm @ 100 m

Internal Adjustment Range (reticle):

Elevation – Meters @ 100 m  25.5 MILS

Windage – Meters @ 100 m 11.25

MILS Tube Diameter: 3:4 mm

Length: 15.9 inches

Weight: 33.5 oz

Reticle offerings SKMR, SKMR 3, MSR/Ki, AMR

Illuminated: Yes
